Chemical Industry HART Communication Smart Valve Positioner

Product Categories
POWERFLOW CONTROL CO,. LTD.
Contact Now

Chemical Industry HART Communication Smart Valve Positioner

Brand Name : POWERFLOW

Model Number : IP6000

Certification : NEPSI, ISO9001, HART, CE

Place of Origin : CHINA

MOQ : 1 Nos

Price : Quotation Offered by Email.

Payment Terms : T/T

Supply Ability : 50Nos/Week for every single Customer.

Delivery Time : 10-15 Days

Packaging Details : CTN, 21*26*16CM

Set-point Signal : 4-20mA DC

Min. Operating Current : 3.6mA DC

Stroke Range : Linear for 10-100mm, Rotary for 30-100°

Ambient Temp. : -20 - 70℃

Flow : 55 L/min (Sup=0.14MPa)

Protection Class : IP66

Contact Now

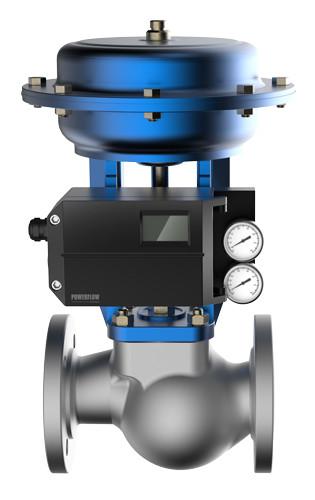

IP6000 Series Aluminum Smart Valve Positioner with 4-20mA feedback


​1. Product Description

IP6000 Smart positioner supplies remote functions. It can accurately control valve stroke, according to input signal of 4-20mA, which is being input from the controller. In addition, built-in micro-processing operator optimizes the positioner's performance and provides unique functions such as Auto calibration, Hart protocol. It also can be side mounted with diaphragm valve and angle seat valve.

​2.Technical Datas

Material Aluminum
Set-point Signal 4 - 20mA DC
Min. Operating Current 3.6mA DC
Vibration Resistance

0.15mm,10Hz-60Hz,20 cycle/axis

20m/s2,60Hz-500Hz,20 cycle/axis

Recommended range for control valve

≤ 20 m/s2,no resonance peak
Ambient Temp. -20 - 70℃
Gas Source Requirement ISO 8573-1 Class 3
Steady State Air Consumption ≤ 0.4 L/min
Supply Pressure 0.14 - 0.7MPa
Flow 55 L/min (Sup=0.14MPa)
Stroke Control Range Linear 10-100mm; Rotary 30-100°
Electrical Connection M20*1.5
Pneumatical Connection G1/4
Explosion Proof Ex ia IIC T4/T6
Protection Class IP66
Weight 2KG


3. Features

  • Easy to Start-up
  • Ex ia Explosion Proof
  • Piezo Valves From Germany


4. Product type selection

Chemical Industry HART Communication Smart Valve Positioner
Remarks: Power off State option is safe by default. There is no pressure gauge for the type of seperate install positioners.

5. Dimensions

  • Positioner dimensions

Chemical Industry HART Communication Smart Valve Positioner

  • Bracket for linear actuators

Chemical Industry HART Communication Smart Valve Positioner

  • Bracket for rotary actuators

Chemical Industry HART Communication Smart Valve Positioner

  • Seperate install sensor

Chemical Industry HART Communication Smart Valve Positioner
